Description
A modern flexographic press operates at web speeds of 400–600 m/min, with color-to-color register tolerance held to ±0.05 mm across an 8-color stack. Achieving that register accuracy depends on auxiliary servo-positioning axes — ink-fountain rollers, anilox-engagement actuators, register-correction adjusters — each driven through a precision worm gearbox sized to combine high torque, low backlash, and self-locking holding under press-vibration loads. The VRV063 is a 63 mm center-distance worm reducer built specifically for this duty: 165 Nm continuous torque, ratios 5:1 to 100:1, backlash <5 arcmin in matched-pair precision class, and a vibration-damped housing that resists the harmonic inputs typical of high-speed press operations.

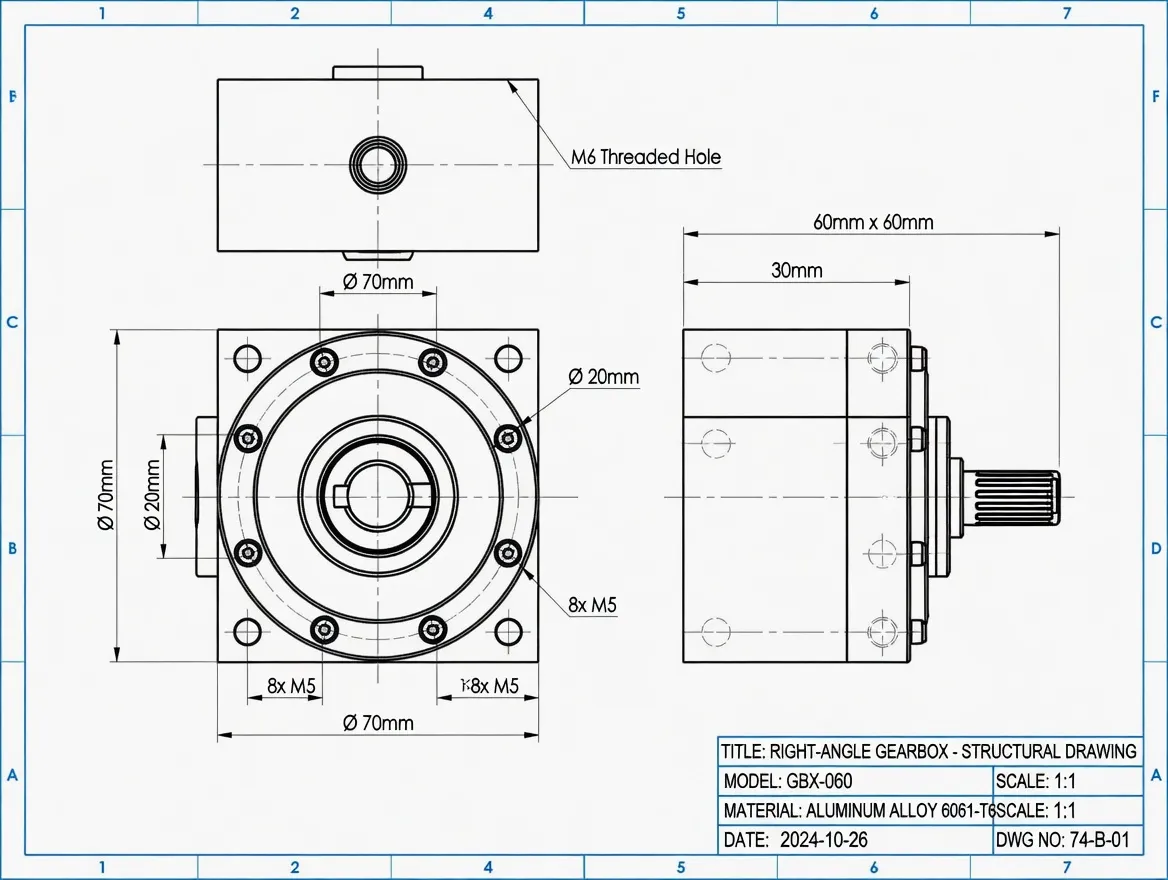

Key Specifications & Parameters of the VRV063 Printing Worm Reducer
The VRV063 follows the standard NMRV063 mounting envelope upgraded for printing-press duty: ISO 1328 Class 5 worm-screw grinding, matched-pair gear selection, and a vibration-damped iron-reinforced aluminum housing that suppresses press-frame harmonic transmission. All ratings reference 1,400 rpm input under ISO 14521 worm gear load capacity methodology.
| Parameter | Value | Note |
|---|---|---|
| Center distance | 63 mm | NMRV063 standard envelope |
| Continuous torque | 165 Nm | Press register-drive duty |
| Peak (transient) torque | 285 Nm | Web-break inertial peak |
| Reduction ratio range | 5:1 – 100:1 | 30:1 to 50:1 most common |
| Backlash — standard | <9 arcmin | General print auxiliary axes |
| Backlash — precision class | <5 arcmin | Register-critical axes |
| Vibration damping | 8–12 dB attenuation | vs std NMRV063 housing |
| Total weight | 10.8 kg | Iron-reinforced housing |
| Output bore | Ø25 mm | Solid or hollow shaft |
| Radial output load | ≤3,500 N | Mid-shaft, continuous |
| Operating temperature | +0°C to +60°C | Press hall ambient |
| Cycle endurance | ≥8 million cycles | Backlash growth <25% |
What Is a Printing-Grade Worm Gearbox & Why Press OEMs Specify It
A printing-grade worm gearbox is a precision worm reducer engineered for the specific operating environment of high-speed printing presses: continuous web-handling vibration loads, fine-resolution servo positioning requirements, and 24/7 operational duty cycles common in commercial print and packaging plants. The press-environment requirements differ from general industrial duty in three measurable ways:
- Vibration-load resistance: Press-frame harmonics in the 30–180 Hz band feed continuously into mounted gearboxes. Standard aluminum NMRV housings amplify this vibration into the gear mesh, accelerating wear. The VRV063 iron-reinforced housing damps press-band vibration by 8–12 dB compared to a standard NMRV063 housing.
- Fine-resolution positioning: Register-correction axes adjust roller-stack alignment in 5–15 µm increments. Backlash above 8 arcminutes blurs the resolution; the VRV063 precision class at <5 arcmin preserves the positioning command resolution through the gearbox.
- Self-locking under web tension: When a web break or splice event de-energizes the servo, the gearbox must hold the roller position against residual web tension to prevent uncontrolled web movement. Worm architecture at ratios ≥30:1 self-locks; planetary alternatives require an electromagnetic brake module.
Per ISO 14521 (worm gear load capacity), DIN 3996 (worm gear strength), and AGMA 6034 (worm gear nomenclature), a properly-sized VRV063 at 1.5× service factor for typical 16-hour press shift operation delivers an L10 service life exceeding 35,000 hours — equivalent to 5–7 years of typical commercial print operation. For deeper background on worm gearbox application case studies in printing and packaging machinery, see the industrial worm reducer applications knowledge base.
Types of VRV063 Configurations for Printing Equipment
The VRV063 platform supports four standard variants, each matching a specific class of printing-press auxiliary axis. Internals share the same vibration-damped housing and matched-pair gear selection; differentiation is in mounting interface, output style, and motor adapter:
| Variant | Backlash Class | Output Style | Best Application |
|---|---|---|---|
| VRV063-S | <9 arcmin | Solid shaft | General press auxiliary axes |
| VRV063-P | <5 arcmin | Solid shaft | Register-critical drives |
| VRV063-H | <9 arcmin | Hollow shaft Ø25 | Direct roller-shaft mount |
| VRV063-VFD | <9 arcmin | Solid shaft | Variable web-tension drives |
The hollow-shaft VRV063-H variant is the workhorse for ink-fountain roller drives and chill-roll positioners, where the roller shaft passes directly through the gearbox bore eliminating the coupling and saving 35–45 mm of axis stack height. The VFD variant pre-matches an inverter-duty motor for variable web-tension control loops, particularly common in flexo and gravure label-printing applications. For matched worm-and-gear-set specifications used in custom precision printing applications, the worm and gear set technical reference provides component-level material and machining data.
VRV063 Production Process — From Iron-Reinforced Housing to Vibration-Tested Drive
The VRV063 production flow extends the standard precision-class flow with two press-specific stages: iron-reinforced housing manufacturing and end-of-line vibration response testing. Six stages:
- Bronze worm wheel casting: CuSn12Ni2 phosphor bronze centrifugally cast at controlled cooling rate, achieving HB 100–115 hardness. Each casting passes ultrasonic verification per ASTM E114, with porosity acceptance <1.5% volumetric for the precision class.
- Worm screw grinding: 20CrMnTi steel case-hardened HRC 58–62 (case depth 0.7–1.0 mm), then CBN profile-ground to ISO 1328 Class 5 with surface finish Ra ≤0.2 µm.
- Iron-reinforced housing manufacturing: The VRV063 housing combines a die-cast aluminum outer shell with a structural iron insert at the gear-mesh region. The iron insert mass-loads the gear-mesh resonance frequency outside the press-band harmonic range (30–180 Hz), delivering the 8–12 dB vibration damping vs standard aluminum NMRV063.
- CMM matched-pair selection: Each worm and worm wheel measured on precision CMM and selected algorithmically for minimum total composite error. VRV063-P precision class draws from the tightest 8% of the production distribution.
- Assembly & lubrication: Tapered roller bearings preloaded to 0.005 mm axial-play specification, FKM (Viton) double-lip seals installed, sealed-for-life PAO synthetic lubricant injected (320 ml).
- Vibration response & backlash test: Each unit measured for backlash on calibrated test stand (precision rejects any unit >5 arcmin; standard rejects >9 arcmin). Vibration-response transfer function measured at 30–180 Hz input excitation; acceptance: ≤15% transmissibility through the housing into the gear-mesh.
How to Select the Right Worm Reducer for Printing Press Auxiliary Axes
A seven-step procedure aligns VRV063 specification with your printing press requirements. The press-specific steps (vibration-load assessment and register-resolution analysis) replace generic-industrial assumptions used for catalog NMRV sizing.
- Identify axis type and resolution requirement: Register-correction axes typically require ±5–15 µm positioning, demanding precision class (<5 arcmin). Ink-fountain and chill-roll drives typically require ±30–50 µm, where standard class (<9 arcmin) is sufficient. Slitter-rewinder and folder positioners run ±100–300 µm, where standard class is comfortably adequate.
- Calculate continuous & peak torque: Continuous: roller torque + web-tension contribution. Peak: web-break inertial deceleration. Apply 1.7× service factor for 24/7 commercial print duty, 2.0× for high-shock applications like web-break mode.
- Determine reduction ratio: Output speed typically 30–150 rpm for register-correction, 100–500 rpm for ink-fountain and chill-roll drives. From a 1,400 rpm motor or 3,000 rpm servo: 50:1 reduces to 28–60 rpm, suitable for register and slow-positioning duty.
- Specify vibration-environment class: Sheet-fed offset and digital presses operate in <0.3 g vibration ambient (standard NMRV adequate). Web flexo and gravure presses operate in 0.5–1.2 g ambient where the VRV063 iron-reinforced housing is operationally critical.
- Confirm self-locking requirement: Web-handling axes typically benefit from self-locking holding under residual web tension during de-energization events. Specify ratio ≥30:1 for self-locking property.
- Select output configuration: Solid shaft (VRV063-S/P) for coupled drives; hollow shaft (VRV063-H) for direct roller-shaft mount; pre-mated VFD inverter-duty motor (VRV063-VFD) for variable web-tension closed-loop control.
- Specify motor frame & verify mounting: 80B5/B14 IEC servo (typical 0.55–1.5 kW) for European servo systems; NEMA 34 for North American closed-loop steppers. Contact our printing-drive worm gearbox engineering team with your press model and axis specification for compatibility verification.
Compatible Components & Spare Parts We Stock
| Component | Specification | Use Case |
|---|---|---|
| Precision worm shaft | 20CrMnTi, ISO 1328 Class 5 | Replacement worm screw |
| Bronze worm wheel | CuSn12Ni2, custom keyway | Field rebuild kit |
| Matched worm and gear set | Lapped pair, <5 / <9 arcmin | Complete drivetrain swap |
| Iron-reinforced housing | Aluminum + iron insert | Vibration-damped service replacement |
| Tapered roller bearings (pair) | Class P5 precision, preloaded | Service rebuild |
| FKM (Viton) seal kit | Double-lip, Ø25 / Ø19 | Annual seal replacement |
| Inverter-duty motor | 80B5, NEMA MG1 Part 31 | VFD variant motor swap |
All VRV063 components are stocked as separate spares for press-line maintenance programs. The matched worm-and-gear-set is the most-ordered service item across press fleet operations — available with custom modulus (M2.5–M5) and tooth profile for OEM-specific platform requirements. For deeper technical reference on worm gearbox material and machining specifications, see the comprehensive worm gearbox technical guide.
VRV063 Application Sectors Across the Printing & Packaging Industry
The VRV063 is deployed across the printing and packaging value chain — from prepress through finishing — on auxiliary axes where the right-angle, self-locking, vibration-damped combination outperforms inline planetary alternatives:
- Press register-correction drives: Color-to-color positioning on offset, flexo, and gravure presses. Precision class VRV063-P drives the 5–15 µm incremental adjustment of register-cylinder phasing.
- Ink-fountain roller drives: Variable-speed metering of ink supply on offset and flexo presses. The VFD variant supports the 30–100% speed range typical of modern ink-rate control loops.
- Chill-roll & cooling-cylinder positioning: Lateral-position adjustment of chill rolls in heat-set web offset. Hollow-shaft VRV063-H integrates directly with chill-roll shafts.
- Slitter-rewinder positioning axes: Knife-position adjustment, rider-roll alignment, and core-shaft positioning on slitter-rewinder finishing equipment.
- Anilox-roller engagement actuators: Axial engagement and disengagement of anilox rollers in flexo press impression cylinders. Self-locking property holds engagement position during press operation.
- Folder & sheeter drives: Cross-cutter and folder positioning axes in commercial print finishing equipment.
- Label-press web-tension reducers: Servo-controlled tension dancers and torque-mode web-tension drives for narrow-web label printing.
What Press OEMs & Print-Plant Engineers Say About the VRV063
“Specified VRV063-P precision class on register-correction axes across our 8-color flexo press platform. Held color-to-color register at ±0.04 mm at 580 m/min web speed — tighter than the ±0.05 mm spec we delivered against. The vibration damping from the iron-reinforced housing is the engineering detail that closes the deal vs cheaper alternatives.”
— Pierre B., Senior Drive Engineer, Press OEM, France
“Replaced 38 ink-fountain drive gearboxes across two heatset web offset presses. Standard VRV063-H hollow-shaft fit the existing chill-roll shaft envelope without bracket fabrication — saved roughly 4 hours of installation labor per axis. 22 months in service, no register-related issues attributable to drive backlash.”
— Friedrich S., Maintenance Engineering Manager, Commercial Print Plant, Austria
“Built VRV063-VFD with 1.5 kW inverter-duty motor into a label-press web-tension control loop. Held tension within ±1.8% across 30–100% line speed — better than the ±3% spec the OEM design called for. Self-locking property eliminated the brake module our previous solution required.”
— Liam O., Mechanical Design Engineer, Label Press OEM, Ireland
“Standardized on VRV063-P across 14 slitter-rewinder finishing lines. Drop-in fit on all 14 retrofit installations replacing failed European-brand gearboxes. The matched-pair selection documentation makes our equipment qualification audits straightforward — saved roughly 3 weeks of validation paperwork on the first production lot.”
— Ricardo S., Equipment Engineering Lead, Packaging Converter, Brazil
Innovation Highlights — What Makes VRV063 Different for Press Applications
Three engineering details distinguish the VRV063 from generic NMRV063 reducers used in printing press service:
- Iron-reinforced vibration-damped housing: The aluminum die-cast outer shell with structural iron insert at the gear-mesh region delivers 8–12 dB vibration damping in the 30–180 Hz press-band harmonic range. This is the single most operationally relevant difference from standard NMRV063 in press service — field data shows 2.5–3.5× service life extension in continuous-duty press operation.
- Press-specific seal package: Double-lip FKM (Viton) seals with auxiliary fiber-deflector ring resist the typical press-environment contamination mix of paper dust, ink mist, and aerosolized cleaning solvents. Test data shows seal-life equivalence to general industrial duty despite the harsher contamination loading.
- 8-million-cycle endurance verification: Production lots sample-tested under 75% rated load with continuous reversing cycles. Acceptance criteria: backlash growth <25%, no detectable bearing wear, no lubricant degradation. Equivalent to 5–7 years of typical 4,000-cycle/day commercial press auxiliary-axis duty.
Why Source the VRV063 Worm Gearbox From Us
Three reasons press OEMs and print-plant engineering teams source VRV063 from gearboxesworm.net:
- Press-environment engineering specialization: The iron-reinforced housing and press-specific seal package are not catalog options at general worm gearbox suppliers — they require dedicated tooling for the iron-insert manufacturing and dedicated test stands for the vibration-response validation. The VRV063 production line is configured specifically for press auxiliary-axis duty. Read more about our printing worm gearbox engineering background.
- Press OEM platform compatibility: We maintain a verified compatibility chart of VRV063 mounting interfaces against the major press OEM platforms (Heidelberg, KBA, Komori, manroland, Goss, Mark Andy, Bobst, Comexi, Nilpeter). For most retrofit installations, VRV063 is direct mechanical drop-in — saves the bracket fabrication step that European-brand sources typically require.
- Volume scheduling for press fleet operations: Annual contract pricing tiers at 50, 250, 1,000, and 5,000 unit volumes — with dedicated production allocation for press OEM ramp-up programs. Critical for press OEMs scaling new press platforms and for commercial print plants standardizing across multi-press fleets.
Frequently Asked Questions About the VRV063 Printing Worm Gearbox
1. How does the VRV063 vibration-damped housing actually work in press service?
The aluminum outer shell carries the mounting interface and provides the typical NMRV063 envelope; the structural iron insert at the gear-mesh region adds mass that shifts the housing’s natural resonance frequency outside the 30–180 Hz press-band where the harmonic content is concentrated. The shifted resonance plus the iron’s higher internal damping factor delivers 8–12 dB vibration attenuation through the mesh. Field data from heatset web offset deployments shows 2.5–3.5× service life extension vs unreinforced aluminum NMRV063 in the same axes.
2. Is the VRV063 mechanically interchangeable with NMRV063 from European press OEM suppliers?
Yes — mounting hole pattern, output bore (Ø25 mm), and B5/B14 input flange dimensions all match the NMRV063 industry-standard envelope. The iron-reinforced housing is dimensionally identical to standard aluminum NMRV063 from the outside; the difference is internal. The VRV063 functions as a direct mechanical drop-in replacement for failed standard NMRV063 units in press auxiliary-axis service. Verify motor frame compatibility (most press auxiliary motors are 80B5/B14 or NEMA 34) and confirm input rotation direction.
3. What’s the cost difference between standard and precision class for press applications?
VRV063-P (precision <5 arcmin) carries roughly 1.5–1.8× the unit price of VRV063-S (standard <9 arcmin), reflecting the matched-pair selection process and tighter assembly tolerance. At OEM volume tiers (1,000+ units), the precision premium narrows to 1.3–1.5×. For a typical 8-color web flexo press, the typical mix is 40% precision class on register-correction axes and 60% standard class on ink-fountain, chill-roll, and slitter-rewinder positioners.
4. Can the VRV063 handle the 24/7 continuous-duty cycle of high-volume commercial print?
Yes — the iron-reinforced housing and 8-million-cycle endurance verification are sized specifically for continuous-duty press operation. For typical 24/7 commercial print duty (8,000–12,000 cycles per day on register-correction axes): 25,000+ hours service life, equivalent to 3–4 years. For lower-cycle ink-fountain and chill-roll positioners: 35,000+ hours, equivalent to 5–7 years. Annual seal-replacement is recommended for press auxiliary-axis service to maintain rated lifecycle.
5. How does VRV063 compare to a planetary servo reducer for register-correction duty?
Planetary servo reducers offer higher efficiency (94–96%) and lower backlash (typically <3 arcmin) but require an electromagnetic brake module to hold register position when servo de-energizes — adding cost, cabling complexity, and a failure mode. The VRV063-P at <5 arcmin self-locks natively at ratios ≥30:1, eliminating the brake module entirely. For most register-correction applications, the VRV063-P delivers the required positioning resolution at 60–75% the total integrated cost of a planetary + brake-module solution.
6. What lubricant maintenance does the VRV063 require in press service?
Sealed-for-life PAO synthetic factory fill is rated for 8,000 hours or 24 months in typical press service. For 24/7 continuous-duty operation, halve these intervals or implement quarterly oil-sample condition monitoring to track lubricant degradation. The 320 ml lubricant volume on the VRV063 is roughly 2.2× the volume on a standard NMRV063, contributing meaningfully to extended service intervals before lubricant becomes the limiting factor.
7. What lead times apply for VRV063 standard vs precision configurations?
VRV063-S (standard) in common ratios (30:1, 50:1, 80:1, 100:1) ships from finished-goods stock within 7–10 business days. VRV063-P (precision) typically ships within 3 weeks given the matched-pair selection process. VRV063-H hollow-shaft and VRV063-VFD pre-mated motor variants ship within 14 business days standard, 4 weeks precision. For press OEM volume orders (100+ units), production allocations and contract pricing tiers are available — contact our team for project-specific scheduling.
