Description

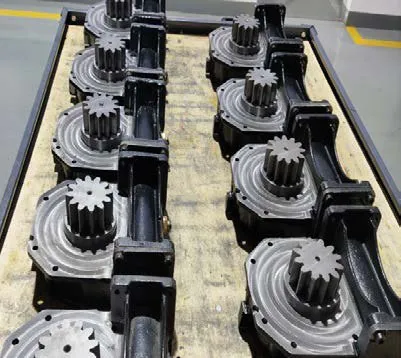

A modern electric pallet jack performs 280–420 lift cycles per shift, each raising a load of 1,000–2,500 kg against gravity. The drive worm gearbox on the lift axis must hold the load stationary when the motor de-energizes — without consuming battery current — and release cleanly on the next lift command without back-drive creep. For cold-storage applications operating at -25°C to -30°C, the gearbox must also maintain full torque transmission and self-locking property through the lubricant viscosity changes that accompany deep-cold ambient. The SRV086 is engineered for this specific forklift and pallet-jack duty: 215 Nm continuous torque, 5:1 to 100:1 ratios, IP65 sealing, -30°C cold-storage lubricant, and self-locking load hold at all ratios ≥30:1.
Key Specifications & Parameters of the SRV086 Forklift Worm Gearbox
The SRV086 occupies an 86 mm flange-diameter mounting envelope sized to match the material-handling industry standard interfaces used across Toyota, Crown, Raymond, Jungheinrich, and Linde platforms. All ratings reference 1,400 rpm input under ISO 14521 worm gear load capacity methodology, with cold-temperature (-30°C) derating separately verified for the cold-storage lubricant variant.
| Parameter | Value | Note |
|---|---|---|
| Mounting envelope | 86 mm flange | MH industry standard |
| Continuous torque | 215 Nm | Lift & steering duty |
| Peak torque | 365 Nm | Start-up with full load |
| Reduction ratio range | 5:1 – 100:1 | 40:1, 60:1 most common |
| Self-locking threshold | ≥30:1 ratio | Holds load without battery draw |
| Cold-storage rating | -30°C | CS lubricant variant |
| Total weight | 8.4 kg | Compact for vehicle packaging |
| Output bore | Ø28 mm | Solid or hollow shaft |
| Sealing rating | IP65 | Washdown & condensation |
| Operating temperature | -30°C to +60°C | Cold-storage to ambient |
| Motor voltage range | 24V / 36V / 48V DC | Battery-powered vehicles |
| Cycle endurance | ≥500,000 lift cycles | 8–10 year vehicle life |
What Is a Forklift Worm Gearbox & Why Material Handling Equipment Needs It
A forklift worm gearbox is a compact right-angle worm reducer engineered for three simultaneous requirements specific to battery-powered material-handling equipment: self-locking load hold without active power, compact mass-budget packaging within the vehicle frame, and low-temperature operational reliability in cold-storage warehouse environments.
- Battery-current self-locking hold: An electric pallet jack holds a 1,500 kg load on the forks during transit between pick and deposit stations. If the gearbox requires active motor current to hold the load (as planetary and helical architectures do without a brake module), that holding current drains the battery continuously throughout transit. The SRV086 self-locks mechanically at ratios ≥30:1, drawing zero battery current during load-hold events — a meaningful contribution to shift-length battery range.
- Cold-storage operational reliability: Warehouses refrigerated at -25°C to -30°C for food-cold-chain and pharmaceutical cold-storage logistics represent 12–18% of forklift operating hours globally. At -30°C, standard ISO VG220 mineral-based lubricants develop kinematic viscosities of 8,000–15,000 cSt — 40–70× their rated viscosity — creating gear-mesh starvation and bearing-side torque overload on start-up. The SRV086 cold-storage variant uses a specially formulated PAO synthetic lubricant rated to -40°C with kinematic viscosity of 750 cSt at -30°C, ensuring clean lubrication film from cold start.
- Mass-budget packaging: Electric forklifts and pallet jacks have tight mass-budget constraints for the drive system — counterbalancing the front-axle lift load limits how much drive-system mass can sit at the rear of the vehicle. The SRV086 at 8.4 kg is the compact mass-budget specification in the 200–250 Nm torque class.
Per ISO 14521 (worm gear load capacity) and DIN 3996 (worm gear strength), a properly-sized SRV086 at 1.5× service factor for typical pallet-jack lift-cycle duty delivers a cycle-count endurance exceeding 500,000 lift cycles — aligned with the 8–10 year design horizon of typical electric forklifts and pallet jacks. For motor pairing options across the 24V, 36V, and 48V DC battery-drive universe, the worm gear motor specialist resource provides current motor-platform compatibility data.
Types of SRV086 Configurations for Material Handling Equipment
The SRV086 platform supports four standard variants matching the major forklift and pallet-jack drive configurations:
| Variant | Motor Voltage | Lubricant | Best Application |
|---|---|---|---|
| SRV086-24 | 24V DC | Standard PAO | Light pallet jacks, order pickers |
| SRV086-48 | 48V DC | Standard PAO | Reach trucks, counterbalance |
| SRV086-CS | 24V / 48V | -30°C PAO synthetic | Cold-storage warehouse equipment |
| SRV086-BLDC | 48V BLDC | Standard PAO | Premium long-life AGV/AMR platforms |
The cold-storage SRV086-CS variant is the operationally critical specification for any forklift or pallet jack deployed in freeze-storage warehouses below -18°C. The specially formulated PAO synthetic lubricant in the CS variant maintains full lubrication film at -30°C cold-start, protecting the gear mesh and bearings from the viscosity-starvation failure mode that disables general-purpose forklifts in cold-chain applications. For deeper background on worm gearbox application in material-handling equipment, see the industrial worm reducer applications knowledge base.
SRV086 Production Process — Battery-Drive & Cold-Storage Engineering Flow
The SRV086 production flow includes two material-handling-specific control points beyond the standard worm gearbox manufacturing flow: cold-temperature lubrication validation and DC-motor mounting-interface verification. Six stages:
- Bronze worm wheel casting: CuSn12Ni2 phosphor bronze centrifugally cast in graphite molds, achieving HB 100–115 hardness. Each casting ultrasonic-tested per ASTM E114 with porosity acceptance <1.5% volumetric.
- Worm screw machining: 20CrMnTi steel case-hardened HRC 60–62 (case depth 0.8–1.2 mm for the forklift-duty specification, deeper than standard general-industrial to support lift-cycle shock-load peaks), then CBN profile-ground to ISO 1328 Class 7 with Ra ≤0.4 µm.
- Aluminum housing die-casting: ADC12 aluminum die-cast in compact envelope optimized for forklift vehicle packaging. External powder-coating with corrosion-resistant finish specified for warehouse condensation cycling (ambient-to-cold transitions produce condensation accumulation on equipment surfaces).
- Assembly & lubricant variant fill: Tapered roller bearings preloaded to 0.005 mm axial-play, FKM (Viton) double-lip seals installed, IP65 face-gasket applied. Standard PAO synthetic (ISO VG220) for ambient variants; cold-storage PAO synthetic rated to -40°C (ISO VG150 viscosity grade, 750 cSt at -30°C) for the CS variant. Volume: 260 ml.
- Cold-temperature validation (CS variant only): Each CS-variant production lot is sample-tested at -30°C ambient. Procedure: condition gearbox at -30°C for 6 hours, then run-test at rated load for 30 minutes. Acceptance: starting torque <1.8× rated, temperature rise <35°C, no evidence of lubricant starvation in post-test oil-sample analysis.
- DC motor-interface verification: Each SRV086 is verified for motor-mounting-interface dimensional conformance to the major material-handling motor-flange convention (24V/48V DC brushless and brushed motor frames). Accepted units ship with a dimensional certificate referencing the relevant platform.
How to Select the Right Worm Gearbox for Forklift & Pallet Jack Applications
A six-step procedure for SRV086 specification, addressing the battery-drive and cold-storage requirements alongside the standard worm gearbox sizing flow:
- Calculate lift-axis continuous & peak torque: Continuous: rated lift capacity × hydraulic-cylinder mechanical advantage × safety factor. Peak: start-up torque with full load. Apply 1.5× service factor for pallet-jack lift-axis duty; 1.7× for forklift traction and steering duty where shock-load from floor obstacles is common.
- Determine output speed: Lift drives typically run 14–28 rpm output at the hydraulic pump or lift-chain sprocket. Steering drives run 90–180 rpm output depending on vehicle speed and steering-gear ratio. Calculate ratio = motor rpm / required output rpm.
- Confirm self-locking requirement: Vertical-lift axes always require self-locking property to hold load without battery current drain. Specify ratio ≥30:1. For cold-storage operation at -30°C, specify ratio ≥50:1 to ensure full self-locking margin even with the slight friction-coefficient reduction caused by the cold-temperature lubricant chemistry.
- Specify operating temperature envelope: For ambient-temperature warehouse operation (0°C to +40°C): standard SRV086-24 or SRV086-48 variant with PAO synthetic lubricant. For cold-storage operation (-20°C to -30°C): SRV086-CS cold-storage variant mandatory. Do not use standard lubricant variants below -15°C — lubricant viscosity at cold-start will exceed the gear-mesh film-formation threshold.
- Select motor voltage and type: 24V DC for light pallet jacks and order pickers (lower system voltage, lighter battery weight). 48V DC for reach trucks, counterbalance forklifts, and higher-performance applications. 48V BLDC for premium long-life AGV/AMR platforms where brushless motors eliminate brush-wear maintenance. Contact our forklift drive engineering team with your vehicle platform and motor specification for compatibility verification.
- Verify vehicle platform compatibility: Confirm mounting-hole pattern, output-shaft orientation, and input-flange dimensions match your vehicle platform. The SRV086 86 mm envelope matches the major material-handling platform conventions; for specific platform model verification, contact our team with the OEM vehicle model and drive assembly drawing.
Compatible Components & Spare Parts We Stock
| Component | Specification | Use Case |
|---|---|---|
| Worm shaft | 20CrMnTi, deep case-hardened | Replacement worm screw |
| Bronze worm wheel | CuSn12Ni2, custom keyway | Field rebuild kit |
| Worm and gear set | Matched pair, lapped | Complete drivetrain swap |
| FKM (Viton) seal kit | IP65 double-lip, Ø28 / Ø19 | Annual seal replacement |
| Cold-storage PAO lubricant | ISO VG150, -40°C rated | CS variant service refill |
| DC motor (24V / 48V) | Brushed or BLDC | Motor swap on vehicle rebuild |
| Output bearings (pair) | Tapered roller, preloaded | Service rebuild kit |
All SRV086 components are stocked as separate spares for MH equipment service and OEM in-line replacement programs. The cold-storage PAO lubricant is the single most critical service-interval item for CS-variant deployments — recommend lubricant change every 3,000 hours or 24 months in continuous cold-storage operation to maintain the viscosity-temperature performance required at -30°C. For deeper technical reference on worm gearbox selection, see the comprehensive worm gearbox technical guide.
SRV086 Application Sectors Across Material Handling & Warehouse Equipment
The SRV086 is deployed across battery-powered material-handling equipment categories where the self-locking + cold-storage + compact-mass-budget combination is operationally required:
- Electric pallet jacks (EPJ): Walk-behind and ride-on pallet jacks. The SRV086 drives the lift-axis hydraulic pump and, in some designs, the traction and steering axes. Self-locking holds load during transit without battery drain.
- Order pickers & stock pickers: Operator-up order-picker trucks where the platform raises with the operator. Self-locking on the platform-lift axis satisfies EN 1726-2 safety requirements for elevated operator platforms without additional mechanical brake.
- Reach trucks: Counterbalance and straddle reach trucks for high-bay racking. The 48V BLDC variant (SRV086-BLDC) is the specification for premium reach-truck platforms targeting 20,000+ hour service life.
- Counterbalance electric forklifts: Sit-down and stand-up counterbalance electric forklifts (1–3.5 ton capacity) where the SRV086 drives the traction and steering gear assemblies.
- Cold-chain logistics equipment: All forklift and pallet-jack types deployed in cold-storage warehouses, refrigerated distribution centers, and pharmaceutical cold-chain operations. The SRV086-CS cold-storage variant is the correct specification for any operation below -18°C.
- Automated guided vehicles (AGV) & AMR: Purpose-built AGV and AMR platforms for warehouse automation. The SRV086-BLDC variant with brushless motor is the typical specification for AGV/AMR drive trains targeting 8–10 year maintenance-free service life.
- Airport ground support equipment: Electric baggage carts, cargo loaders, and aircraft tow tractors operated in outdoor and ramp environments. The IP65 sealing and -30°C temperature range accommodates northern-climate airport winter operations.
What Forklift OEMs & Warehouse Operators Say About the SRV086
“Specified SRV086-CS cold-storage variant across 240 pallet jacks operating in our -25°C frozen-distribution center. Previously using general-purpose gearboxes with standard lubricant — cold-start failures were running at 4.8% per quarter. Post-SRV086-CS deployment: zero cold-start failures across 14 months and 480,000 lift cycles.”
— Lars K., Fleet Engineering Manager, Frozen Distribution Center, Norway
“Built SRV086-BLDC into our new AMR line targeting pharmaceutical cold-chain customers. The brushless motor + self-locking worm combination achieves zero-energy-consumption load hold — critical for AMR platforms that spend 40–50% of their duty cycle stationary at pick or deposit stations.”
— David N., Chief Mechanical Engineer, AMR Manufacturer, Israel
“Replaced 88 lift-axis worm gearboxes across a Toyota-platform pallet jack fleet. Drop-in fit on all 88 vehicles. Self-locking property contributed to our EN 1726-2 elevated-platform safety certification renewal — the functional-safety reviewer accepted the worm self-lock documentation without requiring an additional brake module.”
— Piotr W., Fleet Reliability Manager, Logistics Center, Poland
“Specified SRV086-48 across a 320-unit electric forklift fleet at our port container terminal operating year-round in sub-zero Finnish winter. The IP65 sealing and -30°C lubricant rating have held up through three Arctic winters with zero gearbox-related downtime — the previous brand needed winterization maintenance every season.”
— Matti H., Terminal Equipment Manager, Port Operator, Finland
Why Source the SRV086 Forklift Worm Gearbox From Us
Three reasons material-handling OEMs and fleet operators source SRV086 from gearboxesworm.net:
- Material-handling engineering specialization: The cold-storage lubricant validation at -30°C, DC-motor mounting interface verification, and IP65 condensation-cycle sealing are not catalog options at general worm gearbox suppliers. The SRV086 production line is configured specifically for battery-powered material-handling duty. Read more about our material-handling worm gearbox engineering background.
- Platform compatibility breadth: We maintain verified compatibility documentation against the major material-handling OEM platforms (Toyota, Crown, Raymond, Jungheinrich, Linde, Hyster-Yale, Mitsubishi Logisnext, Manitou). For most retrofit installations, the SRV086 is direct mechanical drop-in for failed OEM original gearboxes — saves the custom-bracket fabrication work that European-brand service-parts sources typically require.
- Volume pricing for fleet operators and service chains: Annual contract pricing tiers at 100, 500, 2,500, and 10,000 unit volumes. Fleet operators with 300+ vehicles typically qualify for the 500-unit tier or above depending on annual turnover rate. Critical for third-party MH service providers standardizing parts inventory across multi-brand fleet service contracts.
Frequently Asked Questions About the SRV086 Forklift Worm Gearbox
1. Why does cold-storage operation (-30°C) fail standard worm gearboxes?
Standard worm gearboxes use ISO VG220 mineral-based or standard PAO synthetic lubricant. At -30°C, ISO VG220 mineral oil develops 12,000–18,000 cSt kinematic viscosity — 55–80× its rated viscosity — creating lubricant flow resistance that overloads the motor on cold-start, starves the gear-mesh of the EHL film required for full-load transmission, and produces bearing-side torque overload spikes. The SRV086-CS ISO VG150 cold-storage PAO synthetic maintains 750 cSt at -30°C, within the acceptable film-formation viscosity range for cold-start operation under full rated load.
2. Does the self-locking property actually reduce battery consumption in a pallet jack?
Yes, measurably. An electric pallet jack with planetary or helical architecture requires the motor to run in holding-torque mode to maintain fork height during transit, consuming 8–15% of rated motor current continuously. For a typical 8-hour shift with 280 lift cycles and 4–6 minutes of load-hold time per lift, the holding-current consumption reaches 18–28 Ah. On a 400 Ah battery, this represents 4.5–7% of usable shift capacity. The SRV086 self-locking worm draws zero holding current, directly converting to extended shift range or reduced charging frequency.
3. Is the SRV086 mechanically interchangeable with major forklift OEM gearboxes?
Yes for the major material-handling platforms — the SRV086 86 mm envelope and output-shaft dimensions match the MH industry standard convention used by Toyota, Crown, Raymond, Jungheinrich, Linde, and Hyster-Yale. For most retrofit installations, the SRV086 is direct mechanical drop-in replacement for failed OEM gearboxes. Verify motor voltage compatibility (24V, 36V, or 48V DC) and confirm input rotation direction matches the existing installation. For specific platform model verification, contact our team with the OEM vehicle model and original gearbox part number.
4. What service life can I expect in continuous cold-storage warehouse duty?
For typical two-shift cold-storage warehouse operation at 280–420 lift cycles per shift: 500,000+ lift cycles, equivalent to 8–10 years of pallet-jack service life. Annual seal kit replacement and lubricant change every 3,000 hours (or 24 months) are required to achieve this service life in cold-storage duty — the cold-storage lubricant additive package depletes faster than standard PAO at the cold-temperature thermal stresses. Condensation-cycling sealing is the other key maintenance interval; IP65 gasket inspection at the 24-month seal-kit replacement is recommended.
5. Does the SRV086 meet ATEX / IECEx requirements for hazardous-area warehouse operations?
The SRV086 gear case itself does not require ATEX certification for typical Zone 22 (combustible dust) or Zone 2 (flammable vapour) warehouse classification. However, the integrated DC motor must carry the appropriate ATEX certification when deployed in classified-area warehouses (fuel distribution, chemical storage, grain handling). We supply the SRV086 with ATEX-rated DC motors (Ex ec IIC / Ex nA IIC) for classified-area applications — specify the area classification zone and gas/dust group when ordering and we’ll match the appropriate motor certification.
6. What’s the difference between the brushed-DC and BLDC motor variants?
SRV086-24 and SRV086-48 use brushed DC motors: simpler speed control, lower unit cost, brush replacement required every 3,000–5,000 hours. SRV086-BLDC uses brushless DC motor: no brush maintenance, 18,000–25,000 hour motor life, better efficiency at low-speed load-hold conditions, higher unit cost (+25–35%). For AGV/AMR platforms targeting 8–10 year maintenance-free operation, BLDC is the correct specification. For standard pallet-jack and forklift service where brush replacement is a routine maintenance item, brushed DC remains the cost-optimal specification.
7. What lead times apply for SRV086 standard vs cold-storage configurations?
Standard SRV086-24 and SRV086-48 in common ratios (40:1, 50:1, 60:1, 80:1) ship from finished-goods stock within 5–7 business days. SRV086-CS cold-storage variant ships within 10 business days (the cold-storage lubricant requires a separate fill-and-seal step from standard production). SRV086-BLDC with brushless motor typically ships within 14 business days based on motor selection. For OEM volume orders (500+ units annually), dedicated production allocation and contract pricing tiers are available.
