Description

A residential ice machine cycles on average 1,200–1,800 times per month across a typical 8–10 year service life — meaning the drive worm gearbox sees roughly 180,000 starts before the appliance retires. The BGV055 is a 55 mm center-distance compact worm gear reducer engineered specifically for this duty profile: 35–58 Nm output torque, 5:1 to 100:1 ratios, sub-60 dB sound emission, FKM lip seals, and a sealed-for-life PAO synthetic lubricant fill. Frame weight is just 3.8 kg — light enough to mount on a countertop appliance frame without compromising the structural mass budget OEMs work to.

Key Specifications & Parameters of the BGV055 Worm Gearbox

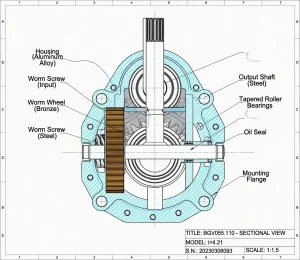

The BGV055 follows the standard NMRV055 mounting envelope, with an aluminum die-cast housing, bronze worm wheel, and case-hardened steel worm. All ratings reference 1,400 rpm input speed per ISO 14521 worm gear load capacity methodology. Selection-grade specifications are listed below, with options noted in the right column.

What Is a Compact Worm Gearbox for Ice Machines?

A compact worm gearbox for ice machines is a single-stage right-angle worm gear reducer sized to drive the auger, sweep arm, or harvest mechanism inside a residential or countertop ice maker. The mechanism converts a 1,400–1,800 rpm AC induction motor (or 24V/48V DC motor in modern compressor-driven units) down to the 14–47 rpm output speed required to push ice cubes from the freezing chamber into the storage bin. The worm gear architecture is preferred over helical or planetary alternatives for three application-specific reasons: self-locking holding (auger stays put when motor de-energizes), quiet operation (sliding-contact mesh has no tooth-pulse vibration audible in kitchen ambient), and compact right-angle layout (motor mounts perpendicular to auger, fitting the typical ice-maker chassis envelope).

Per ISO 14521 (worm gear load capacity calculation) and DIN 3996 (worm gear strength methodology), a properly-sized BGV055 at 50:1 ratio operating at 30 Nm continuous load delivers an L10 service life exceeding 30,000 hours — far beyond the 8–10 year design horizon of typical residential ice makers. For deeper background on worm gear theory and selection methodology, see the comprehensive worm gearbox technical guide covering ISO/AGMA load capacity calculations.

Types of BGV055 Configurations Available

The BGV055 platform supports four standard configurations to match different ice maker mechanism designs. OEMs can specify the configuration that matches their auger drive geometry and motor packaging, using the same 55 mm gear-set internals across all four to keep service-stocking simple.

The DC variant has grown considerably as residential ice makers increasingly adopt inverter-driven compressor systems with brushless DC motors instead of legacy AC induction. The food-grade variant uses NSF-H1 lubricant qualified for incidental food contact, addressing the FDA 21 CFR 178.3570 requirements for ice-contact components. For motor pairing options across the AC and BLDC universe, the worm gear motor specialist resource provides current motor-platform compatibility data.

BGV055 Production Process — From Raw Bronze to Tested Gearbox

The BGV055 follows a six-stage production process designed around appliance-OEM quality requirements. Each stage carries documented quality checkpoints traceable per ISO 9001:2015 procedures.

1. Bronze worm wheel casting: CuSn12Ni2 phosphor bronze centrifugally cast in graphite molds, achieving HB 95–110 hardness and density >8.7 g/cm³. Each casting is ultrasonic-tested for porosity per ASTM E114.
2. Worm screw machining: 20CrMnTi steel bar-stock turned to rough profile, then case-hardened to HRC 58–62 (case depth 0.6–0.9 mm), then CBN profile-ground to ISO 1328 Class 7 quality with surface finish Ra 0.4 µm.
3. Aluminum housing die-casting: ADC12 aluminum die-cast at 680°C in steel molds, externally treated with epoxy-polyester powder coating for kitchen-environment corrosion resistance.
4. Gear pair lapping: Each worm and worm wheel pair runs together for 30 minutes under graduated load (10% → 50% → 100%) with lapping compound, achieving uniform tooth contact pattern verified by Prussian blue check.
5. Assembly & lubrication: Tapered roller bearings preloaded to 5 N·m, FKM (Viton) double-lip seals installed, sealed-for-life PAO synthetic lubricant injected to specified volume (180 ml).
6. End-of-line testing: Each unit run-tested for 30 minutes at rated load, with sound level (<60 dB), backlash (<25 arcmin), and oil temperature rise (ΔT <30°C) recorded against acceptance limits before packaging.

How to Select the Right Worm Gearbox for Your Ice Machine

A six-step selection procedure ensures the BGV055 specification matches your ice maker mechanism. Following these steps in order produces a sized recommendation in roughly 15 minutes of engineering review per platform.

1. Calculate auger break-out torque: Measure or estimate the peak torque required to free the auger after a freeze cycle. For typical 8–15 lb daily-output residential ice makers, this is 25–40 Nm. Apply a 1.5× service factor.
2. Determine output speed: Most residential ice makers run 14–28 rpm output. Output speed = motor rpm ÷ reduction ratio. From a 1,400 rpm motor: 50:1 = 28 rpm; 60:1 = 23 rpm; 100:1 = 14 rpm.
3. Select self-locking ratio: Specify ratio ≥30:1 if the auger must hold position at motor de-energization. Almost all ice maker applications need this; ratios <30:1 are rare exceptions.
4. Choose configuration: Solid shaft (BGV055-S) for belt drives; hollow shaft (BGV055-H) for direct auger mount; DC variant (BGV055-DC) for BLDC motor systems; food-grade (BGV055-FG) where required by appliance certification.
5. Confirm sound budget: Verify the <60 dB rating fits your appliance’s overall sound spec (residential ice makers typically target <55 dB total). The BGV055 contributes minimally given its sub-60 dB envelope.
6. Specify motor frame: 71B5/B14 for AC induction; custom DC adapter for BLDC. Contact our worm gearbox engineering team with your motor frame specification for compatibility verification.

Compatible Components & Spare Parts We Stock

All components are available as separate spares for service rebuild work and OEM in-line replacement programs. Custom worm-gear-set production (modulus M1–M4, DIN6–DIN9 quality, with custom tooth profile) is supported for OEMs needing platform-specific gear pairs — reference the brass worm wheel material and machining knowledge base for material-property selection guidance.

Innovation Highlights — What Makes BGV055 Different

Three engineering details distinguish the BGV055 from generic NMRV055 reducers in the residential appliance market:

• Sub-60 dB acoustic envelope: Achieved through three design choices — ISO 1328 Class 7 worm grinding (vs Class 9 typical of low-cost imports), tapered roller bearing preload tuned to eliminate axial play vibration, and a helically-deflected oil-film lubrication path that prevents the “dry-startup whine” common in cold-start ice makers.
• Sealed-for-life lubrication: 2.4× the lubricant volume of a generic NMRV055, with PAO synthetic base oil rated to 6,000+ hours of cyclic service. No field oil change required across the appliance’s 8–10 year design life — a meaningful reliability advantage for residential customers who never service their ice maker.
• 200,000-cycle endurance verification: Each production lot is sample-tested under 75% rated load with continuous reversing cycles. Acceptance criteria: backlash growth <25%, no detectable bearing wear, no lubricant degradation. This exceeds typical residential ice maker design-life cycle counts by approximately 10%.

Maintenance & Replacement Guide for BGV055 Worm Gearboxes

The BGV055 is engineered as a sealed, maintenance-free unit for the design life of the host appliance. However, when a service-replacement is needed (typical at 8–12 years of residential service or 4–6 years of commercial-light duty), the swap procedure is straightforward.

1. De-energize and unmount: Disconnect power, drain water lines, remove the four M6 mounting bolts holding the gearbox to the ice maker chassis.
2. Decouple from auger: For solid-shaft (BGV055-S), remove coupling clamp. For hollow-shaft (BGV055-H), loosen the shrink-disc retaining bolts and slide off the auger shaft.
3. Inspect & install replacement: Verify auger shaft surface for wear or pitting; light polishing acceptable, deep grooves require shaft replacement. Apply thin film of NSF-H1 grease to mating surfaces, slide replacement BGV055 onto shaft, torque mounting bolts to 12 N·m.
4. Function-test: Run three full ice cycles, verify auger rotation direction, listen for unusual sounds, confirm ice harvest pattern matches OEM specification.

Total service time: typically 25–35 minutes for an experienced appliance technician. The BGV055 is mechanically interchangeable with most NMRV055-frame worm gearboxes deployed in ice maker service, making it a viable drop-in replacement for failed competitor units in field service.

What Ice Maker OEMs & Distributors Say About the BGV055

Global Markets, Sustainability & Regulatory Compliance

The BGV055 ships into more than 40 countries each year, with the largest export volumes going to Germany, the United States, the United Kingdom, the United Arab Emirates, Vietnam, India, Brazil, and Mexico — markets that combine strong residential ice maker demand with rigorous appliance certification requirements.

Compliance documentation we maintain for each market:

• European Union: RoHS 2 Directive 2011/65/EU compliance certificate, REACH SVHC declaration, CE machinery declaration of conformity (where the BGV055 is delivered as a partly-completed machine).
• United States: NSF-H1 lubricant certification on the BGV055-FG variant; FDA 21 CFR 178.3570 compliance for ice-contact applications; UL recognition pending for North American appliance integration.
• Sustainability: ISO 14001:2015 environmental management at our manufacturing site; 87% of bronze and aluminum content sourced from recycled streams; sealed-for-life construction eliminates lubricant disposal across the appliance service life.
• Energy efficiency: Worm gearbox losses contribute <0.4% to total ice maker energy consumption at the BGV055 ratings — the limiting factor in residential ice maker efficiency remains compressor and water-cycle design, not the drive gearbox.

Why Source the BGV055 Worm Gearbox From Us

Three factors that consistently drive ice maker OEMs and distributor channels to specify the BGV055 from gearboxesworm.net rather than alternative sources:

• Specialist worm gearbox engineering depth: Worm gearbox is what we do — not a side product line. Our engineering team applies ISO 14521 / DIN 3996 / AGMA 6034 methodology to your specific duty profile, sizing the BGV055 for your actual application rather than generic catalog overspecification. Read more about our worm gearbox manufacturing capability.
• OEM-volume cost competitiveness: Annual contract pricing tiers at 500, 2,500, 10,000, and 25,000 unit volumes — with private-label badging available at 5,000+ units for OEMs marketing branded ice maker products. The 10,000-unit tier typically saves 28–35% versus single-unit pricing.
• Supply-chain reliability: Multi-month finished-goods buffer in our central warehouse; production redundancy across two manufacturing lines; standard-configuration BGV055 ships within 5–7 business days globally. Critical for OEM line-stop avoidance.

Frequently Asked Questions About the BGV055 Worm Gearbox
