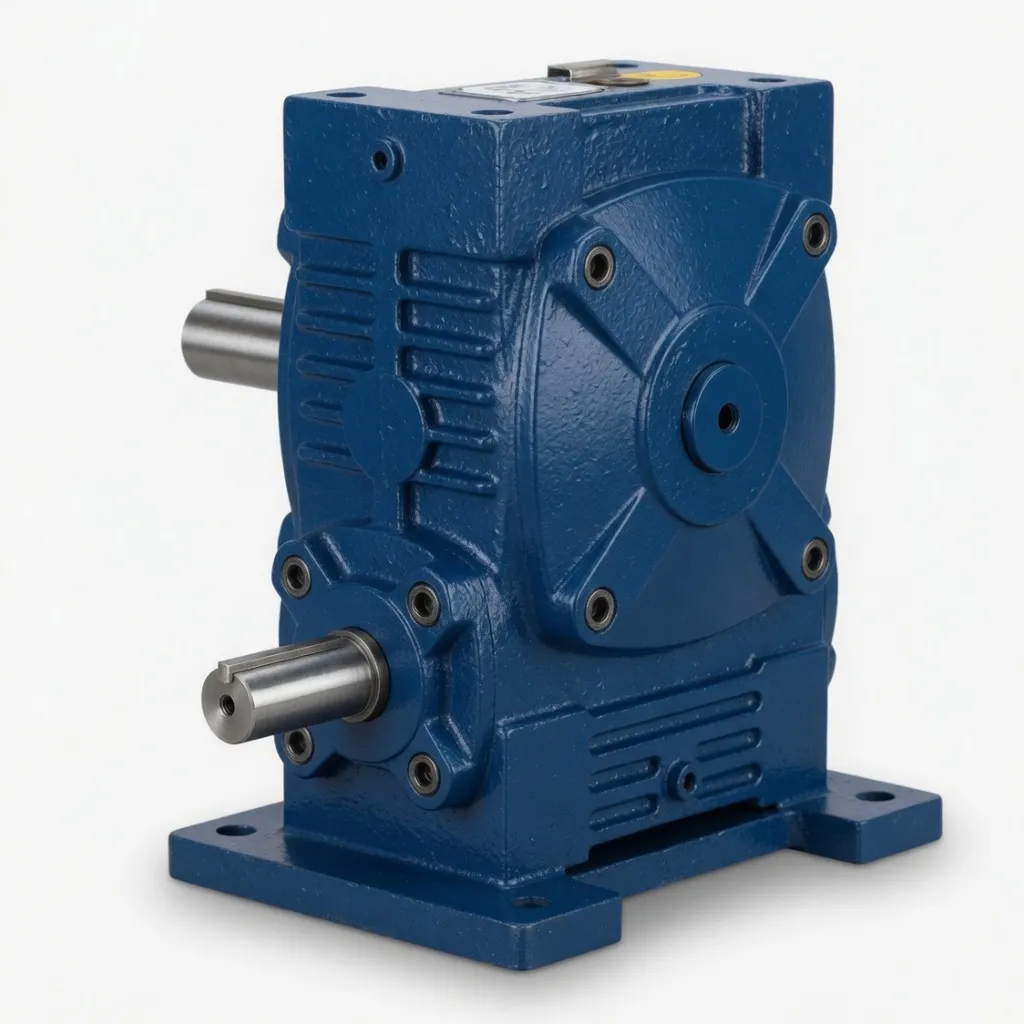

Description
In modern industrial power transmission, efficiency and space optimization are paramount. The PC+NMRV worm gearbox represents a significant leap in mechanical engineering by integrating advanced domestic and international manufacturing technologies. Manufactured in strict accordance with ISO9001 national standards, this series provides a highly reliable, compact, and efficient speed reduction solution.
The “PC” designation stands for the helical pre-stage unit. By combining a helical gear pre-stage with a traditional NMRV worm gear reducer, this hybrid gearbox achieves significantly higher torque output, greater reduction ratios, and superior overall transmission efficiency compared to standalone single-stage worm gearboxes.
Advanced Structural Design and Premium Materials
The structural integrity of a gearbox dictates its lifespan and performance under heavy loads. The PC+NMRV series utilizes a modern square-box structure, engineered for maximum stability and easy mounting.
- Die-Cast Aluminum Alloy Shell: For models up to size 090, the casing is made of high-quality aluminum alloy. This material makes the unit exceptionally lightweight, completely rust-proof, and highly resistant to environmental corrosion.
- High-Hardness Tin Bronze Worm Wheel: The internal worm gear is cast from premium tin bronze. This critical material choice provides exceptional wear resistance, reducing internal friction and ensuring smooth operation even under continuous heavy-duty cycles.
- Carburized Steel Worm Shaft: The worm shaft undergoes precise carburizing and quenching treatments to achieve high surface hardness, ensuring maximum torque transmission without deformation.
Unmatched Technical Advantages
Choosing the PC+NMRV series over a standard speed reducer brings a multitude of operational benefits to your production line:
- High Transmission Efficiency: Because the helical pre-stage uses rolling friction rather than sliding friction, it drastically reduces energy loss. As a result, the combined mechanical efficiency can easily reach and exceed 90%.
- Excellent Heat Dissipation: The aluminum alloy housing features engineered cooling ribs. This design maximizes the surface area for heat exchange, offering fast heat dissipation that prevents the motor and gearbox from overheating during prolonged use.
- Compact, Space-Saving Footprint: Since the input and output shafts are axially aligned with precision, and the gearbox integrates directly with the motor, the complete drive package is surprisingly small, making it ideal for tight machinery spaces.
- Versatile Flange Mounting: Designed with adaptability in mind, it can be seamlessly mounted with both square flanges and round flanges, matching various NEMA and IEC motor standards worldwide.
Technical Specifications Reference
The data below outlines the general operational parameters of our standard PC+NMRV combinations. Custom ratios and configurations are available upon request.
| Combination Model | Matched Motor Power (kW) | Max Output Torque (Nm) | Total Reduction Ratio (i) |
|---|---|---|---|
| PC063 + NMRV040 | 0.12 – 0.18 | 30 – 45 | 75 – 300 |
| PC063 + NMRV050 | 0.18 – 0.25 | 60 – 85 | 75 – 300 |
| PC071 + NMRV063 | 0.25 – 0.37 | 110 – 150 | 75 – 300 |
| PC071 + NMRV075 | 0.37 – 0.55 | 180 – 230 | 75 – 300 |
| PC080 + NMRV090 | 0.55 – 0.75 | 320 – 450 | 75 – 300 |
| PC090 + NMRV110 | 1.1 – 1.5 | 550 – 750 | 75 – 300 |
| PC090 + NMRV130 | 1.5 – 2.2 | 850 – 1050 | 75 – 300 |
Strict Installation Environment Guidelines
To protect your investment and ensure maximum operational longevity, the installation environment must be carefully managed. Please observe the following requirements before mounting your worm gear motor:
- Location: Strictly installed in the interior of the room. Always ensure that the designated ventilation holes on the gearbox are open and unobstructed.
- Temperature & Humidity: Operating temperature must remain between -10 °C and +40 °C (ensure the lubricating oil is not frozen). Operating humidity should be ≤85% with no condensation.
- Atmospheric Quality: Keep away from explosive gases, harmful corrosive gases (such as hydrogen sulfide), and direct liquid contact. Keep the environment free of salt, excessive dust, and iron powder which can ruin oil seals.
- Mechanical & Electrical Environment: Ensure the mounting surface provides no continuous vibration or excessive impact. Keep away from severe electromagnetic noise (e.g., heavy welding machines, power stations) and strong radioactive or magnetic fields. Shield the unit from direct sunlight.
Diverse Industrial Applications
Due to its dynamic speed-reduction capabilities and modular nature, the PC+NMRV worm gear reducer is a universal component utilized in countless industries. It provides reliable automation power for:
- Manufacturing & Assembly: Automated machinery, injection molding machine peripheral equipment, peripheral press equipment, and instrumentation.
- Packaging & Printing: Carton machinery, packaging machinery, screen printing machinery, advertising equipment, and paper industry conveyors.
- Processing Equipment: Leather machinery, woodworking machinery, glass machinery, plastic machinery, and high-frequency ultrasonic equipment.
- Specialty Sectors: Environmental testing equipment, food and beverage processing machinery, textiles machinery, fishery machinery, LED/lithium battery equipment, and even disabled self-service mobility vehicles.
High-Quality PC+NMRV Worm Gearbox Manufacturer
Located in the industrial hub of Hangzhou, Zhejiang Province, China, we are a leading manufacturer specializing in advanced power transmission products. We own rich production and industrial experience, ensuring that every power transmission gearbox leaving our factory is built for unparalleled durability and performance.
Our extensive product lines go beyond the PC+NMRV series. We also manufacture RV series, WP series worm gearboxes, HB series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ZQ series cylindrical gearboxes, planetary gearboxes, and shaft-mounted gearboxes (ATA/SMR series), alongside associated electric motors. Our products are the driving force behind wastewater treatment plants, dredgers, chemical plants, cranes, metalworking mills, and cement industries globally.
Welcome to Customize Your NMRV Worm Gearbox
We offer vast production capabilities ensuring rapid delivery times. Customization (such as specific shaft diameters, shaft lengths, and flange sizes) is readily available to meet your precise engineering requirements. Our expert sales team is ready to provide model selection assistance, professional solution suggestions, and comprehensive OEM services.
Instructions for Purchasing
To quickly order your worm gear reducer, please communicate the following technical details to our team:
- Reducer Model: (e.g., PC071+NMRV075)
- Reducer Speed Ratio: The exact reduction ratio required for your application.
- Input Specifications: Reducer input hole diameter, input power, and input flange diameter (IEC/NEMA).
- Output Specifications: Output hole size/shaft dimensions.
- Accessories: Whether other accessories are required (e.g., torque arms, single/double output shafts, output flanges).
We sincerely look forward to cooperating with you.
Contact us today to negotiate business and exchange information!
