When a North American salmon-processing plant suffered three consecutive worm gearbox failures within 14 months — each costing US$22,000 in lost production plus a forced 36-hour line shutdown — the root cause traced back to one factor: chloride pitting on the standard cast-aluminum housing during daily caustic wash-down. The stainless steel worm gearbox was the engineered answer. The HSRV series from akgnx Co., Ltd is a dimensionally exact stainless variant of the NMRV-standard worm reducer, available in frame sizes HSRV025 through HSRV150. Built from AISI 304 or AISI 316L stainless steel housings with PTFE-coated worm wheels and IP66-rated seals, the HSRV survives where conventional worm gearboxes corrode within 18 months. This article walks through real deployments, materials science, and the selection criteria that distinguish a true wash-down gearbox from a re-painted aluminum unit.
HSRV Stainless Steel Worm Gearbox Specifications at a Glance
The HSRV range matches the MRV/NMRV dimensional envelope precisely, allowing direct one-for-one replacement of corroded aluminum units without machine modification. Output torque values are identical to the standard MRV series; the mechanical performance penalty for stainless construction is approximately 3–5% additional weight and 8% higher unit cost. In return, the salt-spray resistance per ASTM B117 extends from typical 240 hours (painted aluminum) to over 1,500 hours (AISI 316L). All HSRV units ship with food-grade NSF H1 synthetic lubricant pre-filled, FDA-compliant elastomers, and electropolished external surfaces with Ra ≤ 0.8 μm finish.
| Frame | Center Distance (mm) | Output Torque (N·m) | Housing Material | IP Rating | Wash-Down Compatible |
|---|---|---|---|---|---|
| HSRV025 | 25 | 11 | AISI 304 | IP66 | Yes (caustic + acid CIP) |
| HSRV040 | 40 | 40 | AISI 304/316L | IP66 | Yes |
| HSRV050 | 50 | 86 | AISI 304/316L | IP66/IP69K | Yes (high-pressure) |
| HSRV063 | 63 | 156 | AISI 304/316L | IP66/IP69K | Yes |
| HSRV075 | 75 | 248 | AISI 316L | IP69K | Yes (marine grade) |
| HSRV090 | 90 | 340 | AISI 316L | IP69K | Yes |
| HSRV110 | 110 | 600 | AISI 316L | IP69K | Yes |
| HSRV150 | 150 | 1037 | AISI 316L (cast) | IP66 | Yes (with separate guard) |
What is a Stainless Steel Worm Gearbox and Why Do You Need One?
A stainless steel worm gearbox is a right-angle speed reducer where the entire external structure — housing, output shaft, fasteners, breather, and identification plate — is fabricated from corrosion-resistant stainless alloys instead of the painted aluminum or grey cast iron used in standard industrial reducers. The HSRV uses AISI 304 (18% chromium, 8% nickel) for general food-contact applications and AISI 316L (16% chromium, 10% nickel, 2% molybdenum) for chloride-rich environments — including seafood processing, marine winches, swimming pool equipment, and saline-water dosing pumps. The molybdenum content in 316L is critical: it raises pitting resistance equivalent number (PREN) from 19 (304) to 25 (316L), preventing the chloride-ion penetration that causes failure in coastal installations within 6–12 months. Read more about stainless steel worm gearboxes applied across regulated industries.
Real Case Study: Seafood Processor Eliminates Annual Replacement Cycle
A salmon processor running three deboning lines was replacing 11 worm gearboxes per year across the facility — total cost US$68,000 in parts plus an estimated US$270,000 in production downtime. Forensic teardown of failed units revealed the same pattern: chloride attack at the parting line between housing halves, followed by saline ingress past the corroded oil seal, leading to bearing failure typically at 2,800–3,500 operating hours. The plant engineer specified HSRV050 and HSRV063 units with AISI 316L housings, IP69K seals, and NSF H1 lubricant. After 22 months in service, zero gearbox failures have been recorded across 14 installed positions. The investment paid back in 7.4 months on lubricant and replacement parts alone, before counting downtime savings. Three observations from this deployment guide subsequent specification work: first, IP69K is mandatory anywhere wash-down lances exceed 80 bar; second, all external bolts must also be 316L (carbon-steel fasteners corrode within weeks); third, output shaft material should match housing alloy to prevent galvanic action.

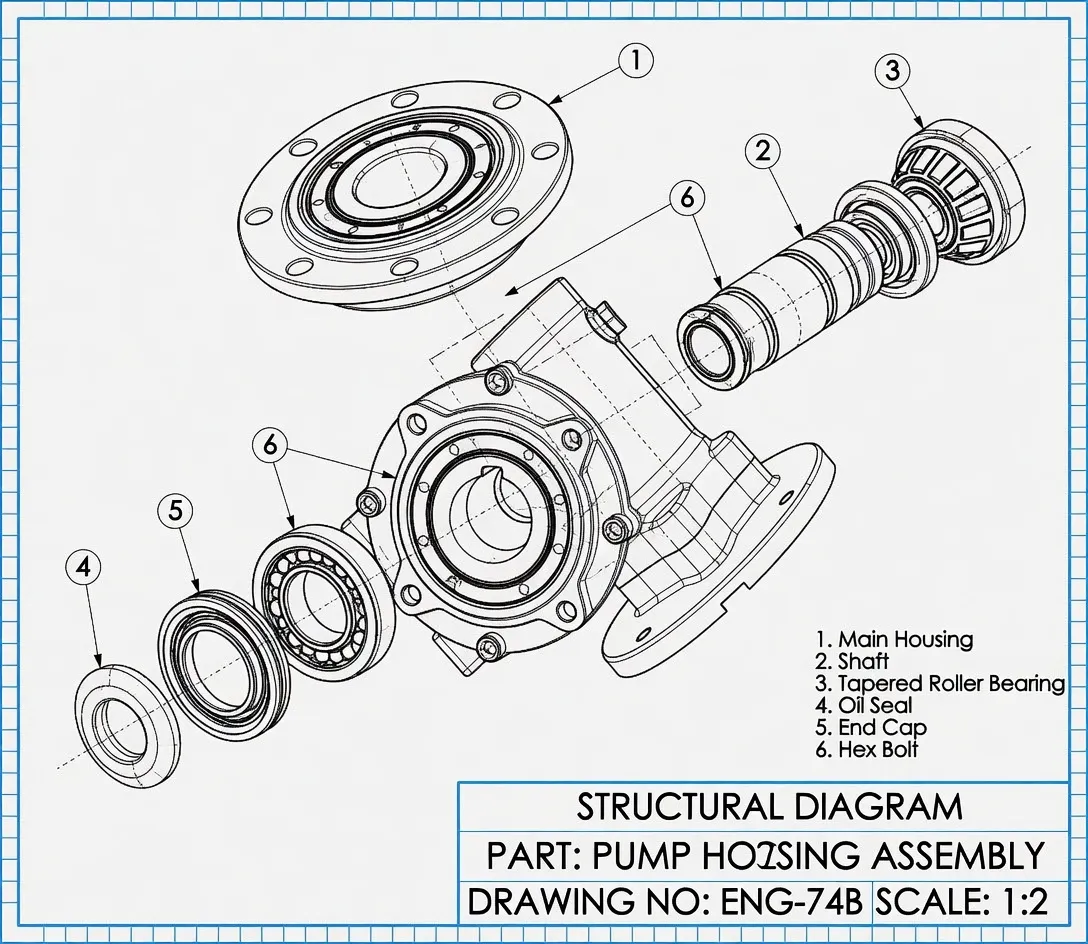

How is the HSRV Stainless Steel Worm Gearbox Manufactured?
The HSRV manufacturing route differs from the standard MRV at four critical points. Housings are CNC-machined from solid 304/316L bar stock or precision-investment-cast (lost wax process), eliminating the porosity that affects die-cast aluminum. After machining, all external surfaces are passivated in 20% nitric acid per ASTM A967 to remove free iron and form the protective chromium oxide layer. Output shafts are turned from 316L bar, induction-hardened on the bearing journals to 56–58 HRC while retaining austenitic core toughness. The worm wheel remains CuSn12Ni2 bronze (the worm-on-bronze tribology cannot be improved) but the wheel is enclosed entirely within the stainless housing — no contact with external environment. Final assembly takes place in a dedicated clean cell to prevent ferrous-tool contamination, and every unit is leak-tested at 1.5 bar before NSF H1 oil filling.
How to Select the Right Stainless Steel Worm Gearbox
The selection logic for HSRV adds three environmental criteria to the standard worm gearbox sizing process. Use this sequence:
- Identify the corrosion environment. Distilled water and dry food contact: AISI 304 is sufficient. Brine, seafood, dairy CIP cleaning, swimming pools, coastal locations within 5 km of seawater: specify AISI 316L without exception.
- Determine wash-down pressure. Manual hose under 30 bar: IP65/IP66 is adequate. CIP wash lances 30–80 bar: IP66 mandatory. High-pressure sanitization above 80 bar at 80°C: IP69K required.
- Calculate torque using standard MRV procedure — the HSRV gear ratings are identical to MRV at the same frame size.
- Verify lubricant compatibility. Food-direct contact (zone 1): NSF H1 synthetic. Pharmaceutical: USP Class VI rated oil. Saline marine: synthetic ester base for hydrolysis stability.
- Confirm fastener and accessory specification. Eye bolts, vent plugs, drain plugs, and torque arms must all be 304 or 316L to maintain the corrosion barrier.
akgnx supplies all corrosion-matched accessories — output flanges, torque arms, and stainless mounting brackets — alongside the gearbox unit, so a complete corrosion-proof drive package ships in a single order.
HSRV Applications Across Food, Marine and Pharmaceutical Industries
Three sectors account for 78% of HSRV demand worldwide. The food and beverage industry — wineries, dairy plants, meat processors, and bottling lines across Europe, North America, and Asia-Pacific — uses HSRV040 to HSRV090 on conveyors, agitators, and cheese-block portioning equipment, where daily CIP cleaning with 70°C caustic plus phosphoric acid rinse degrades standard reducers within a year. The seafood and aquaculture sector along coastal regions in Norway, Chile, North America, and Southeast Asia uses HSRV050–HSRV075 on net winches, fish pumps, and ice augers; here the combination of seawater exposure and constant cyclic loading demands AISI 316L paired with carbide-tipped worm shafts. Pharmaceutical and biotech facilities in major life-science clusters — including the U.S. Northeast, Switzerland, Ireland, and Singapore — use HSRV025–HSRV050 for tablet press feeders, IBC tumblers, and aseptic filling-line indexers, where USP Class VI lubricant compatibility and electropolished surface finish (Ra ≤ 0.4 μm available on request) are mandatory. Across all three sectors, hygienic-design principles aligned with FDA, EHEDG, and 3-A Sanitary Standards are met by the smooth, weld-free housing geometry.
Compatible Stainless Steel Spare Parts in Stock
Maintaining a wash-down system requires every replacement component to match the original corrosion specification. akgnx stocks the complete stainless ecosystem:
- Stainless worm shafts: 304 and 316L bar stock, machined to module M1–M8, with optional carbide deposition on tooth flanks for extreme load. Compatible across the full HSRV size range — see stainless worm reducer parts catalog for dimensional details.
- Bronze worm wheels with stainless hubs: CuSn12Ni2 wheel rim shrink-fitted onto a 316L hub, providing both the optimal bronze-on-steel tribology and full corrosion compatibility at the shaft interface.
- FDA-grade oil seals: Viton (FKM) or PTFE-faced spring seals, white food-grade NBR alternatives, all rated to IP69K when paired with HSRV housings.
- Stainless output flanges and torque arms: Laser-cut and CNC-machined 304/316L plate, electropolished to match housing finish.
- NSF H1 / USP Class VI lubricants: Synthetic PAG and PAO oils in 1L and 5L sealed containers, lot-traceable for pharmaceutical compliance audits.
Total Cost of Ownership: HSRV vs Painted Aluminum in Wash-Down Service
The unit cost of an HSRV050 is approximately 2.4× a standard painted-aluminum MRV050, but lifecycle accounting reveals a different picture. Field data from food-industry installations between 2021 and 2025 produced the following 5-year total cost comparison:
| Cost Element (per unit, 5-year) | Painted Aluminum MRV050 | Stainless HSRV050 (316L) |
|---|---|---|
| Initial purchase | US$280 | US$672 |
| Replacement units (avg 2.3 over 5 yrs) | US$644 | US$0 |
| Labor for replacement (4 hrs each) | US$1,104 | US$0 |
| Production downtime cost | US$5,470 (avg) | US$0 |
| 5-year total | US$7,498 | US$672 |
Why Food and Marine Manufacturers Choose akgnx
akgnx Co., Ltd has supplied stainless worm gearboxes to international markets since 2014, with over 8,400 HSRV units in active service worldwide. Each gearbox carries full material-traceability — heat-number certificates for the housing alloy and 3.1 EN 10204 mill certificates available on request, supporting HACCP and FSSC 22000 audit requirements. Our China facility holds ISO 9001:2015 and ISO 14001 certification, with a dedicated stainless production cell isolated from carbon-steel machining to eliminate cross-contamination. Lead time for stock HSRV040 to HSRV090 sizes is 14 working days. Learn more about our quality systems and stainless steel worm gearbox manufacturing capabilities.
What Customers Say About the HSRV Stainless Steel Worm Gearbox
“We installed nine HSRV063 units on our salmon deboning line in 2023. After two full seasons including high-pressure CIP wash-downs three times daily, all units running. Previous painted reducers averaged 14 months — these are tracking past 24 months with no surface corrosion visible.”
— Tom L., Plant Engineer, seafood processor, Norway
“Specified HSRV050 with NSF H1 oil for our IBC tumbler in pharmaceutical solid-dose manufacturing. Documentation for material certificates and lubricant compliance was complete and ready for our regulatory audit — saved us probably two weeks of vendor follow-up.”
— Anne S., Validation Engineer, contract pharma manufacturer, Switzerland
“Used HSRV075 for an oyster-grading conveyor on a tidal lease. Saltwater spray plus daily wash-down — two years of zero issues, where our previous powder-coated unit corroded through the housing in 11 months. Cost difference was meaningful upfront but easily justified.”
— Mark P., Aquaculture Operator, oyster farm, Australia
“Bought four HSRV040 for our cheese vat agitators. Drop-in replacement, same mounting holes as the failed Italian-brand units. The technical drawings matched exactly, no rework required. NSF lubricant pre-fill made the install genuinely plug-and-play.”
— Jennifer K., Maintenance Manager, artisan cheese producer, United States
Frequently Asked Questions About the HSRV Stainless Steel Worm Gearbox
Q1: When should I specify AISI 316L instead of 304?
Specify 316L for any chloride exposure: seafood processing, brine, swimming pools, dairy CIP, coastal installations within 5 km of seawater. The 2% molybdenum addition raises the pitting resistance number from 19 to 25, providing roughly 3× longer service life in chloride-rich service. The cost difference is approximately 15% of the unit price.
Q2: Is the HSRV dimensionally identical to a standard MRV worm gearbox?
Yes — center distance, shaft heights, mounting bolt patterns, output bores, and flange dimensions are all identical to MRV/NMRV standard. This means an HSRV can replace any failed NMRV-pattern aluminum gearbox without machine modification. Minor difference: HSRV housings are typically 4–6% heavier due to stainless density.
Q3: What lubricant is supplied with HSRV gearboxes?
Standard fill is NSF H1 synthetic PAG (polyalkylene glycol) ISO VG320, suitable for incidental food contact. Pharmaceutical and dairy customers can specify USP Class VI synthetic ester at order. Lubricant lot numbers are recorded on the gearbox nameplate for traceability.
Q4: How does IP66 differ from IP69K, and which do I need?
IP66 protects against powerful water jets up to 12.5 mm nozzle diameter. IP69K adds protection against close-range, high-pressure (80–100 bar), high-temperature (80°C) jets — the standard test condition for food-industry CIP. Specify IP69K wherever sanitation lances are used; otherwise IP66 is adequate.
Q5: Can the HSRV operate at high temperature?
Standard rating is −20°C to +90°C ambient with synthetic lubricant. For continuous operation above 90°C, specify the high-temperature variant with FKM (Viton) seals and ester-based oil — rated to 120°C. Do not exceed these limits without consulting akgnx engineering, as bronze worm wheel hardness drops sharply above 130°C.
Q6: What documentation is provided for regulatory audits?
Standard documents: ISO 9001 certificate of conformity, EU Declaration 1935/2004 for food-contact surfaces, NSF H1 lubricant safety data sheet, and dimensional inspection report. On request: 3.1 EN 10204 mill certificates for housing alloy, USP Class VI lubricant statement, and surface roughness measurement reports for electropolished variants.
