Description

The aluminum compact worm gearbox is the most-deployed gear-reduction format in light-duty OEM machinery globally — with industry estimates placing annual global production above 40 million units across the NMRV030–NMRV050 size range. The reasons are practical: aluminum housing keeps total mass at 1.6 kg, the right-angle worm architecture self-locks under load, and the standardized NMRV mounting envelope accepts motor frames from every major IEC and NEMA supplier. The FGV035 is a 35 mm center-distance NMRV gearbox built specifically for high-volume OEM applications: 35 Nm continuous torque, 5:1 to 100:1 ratios, sealed-for-life lubrication, and direct compatibility with the global NMRV035 ecosystem.

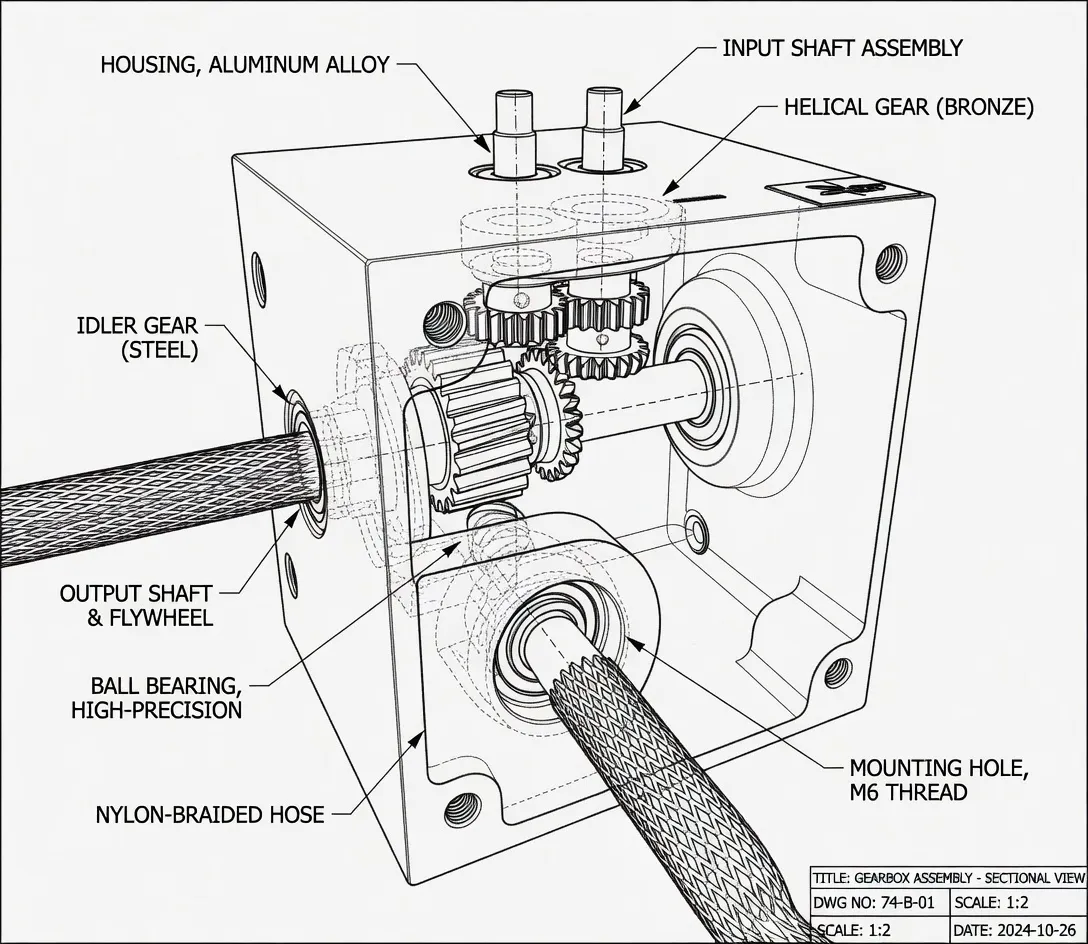

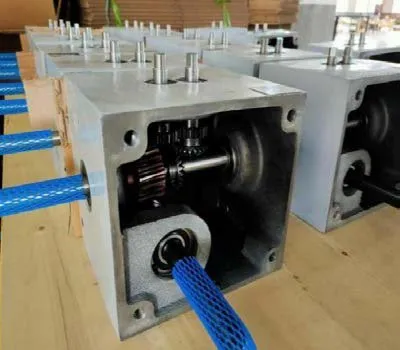

Key Specifications & Parameters of the FGV035 Aluminum Worm Gearbox

The FGV035 follows the standard NMRV035 industry envelope — ensuring direct mechanical interchangeability with NMRV035 units from any global supplier. Aluminum die-cast housing, bronze worm wheel, case-hardened steel worm screw. All ratings reference 1,400 rpm input speed under ISO 14521 worm gear load capacity methodology.

What Is an Aluminum Compact Worm Gearbox & Why Light-Duty OEMs Specify It

An aluminum compact worm gearbox is a single-stage right-angle worm reducer with a die-cast aluminum housing, distinguished from cast-iron alternatives by lower total mass and lower unit cost. The aluminum NMRV format dominates light-duty OEM applications globally for four interlocking economic and engineering reasons:

• Mass advantage: Aluminum housing weighs roughly 35–45% of an equivalent cast-iron housing. For portable equipment (mobile conveyors, agricultural handheld tools, light-format packaging machines), this directly affects product weight, shipping cost, and operator ergonomics.
• Cost economics: Aluminum die-casting is among the most cost-efficient housing manufacturing routes. Combined with the bronze-on-steel worm-and-wheel mesh, the FGV035 lands at roughly 35–45% the unit price of equivalent helical or planetary reducers in the same torque range.
• Mounting universality: The NMRV035 envelope accepts motor frames from every major IEC and NEMA supplier without adapter plates. OEMs can specify FGV035 across multiple regional motor-supply chains without requiring different gearbox SKUs per region.
• Self-locking property: At ratios ≥30:1, the worm-gear architecture self-locks — holding load when motor de-energizes. For applications like vertical lifts, gate openers, and conveyor belt drives where load-holding is required, this eliminates the cost and failure mode of a separate brake module.

Per ISO 14521 (worm gear load capacity calculation) and DIN 3996 (worm gear strength methodology), an FGV035 sized at 1.5× service factor for typical 8–12 hour single-shift OEM duty delivers an L10 service life exceeding 25,000 hours — aligned with the 5–7 year design horizon of typical light-duty OEM equipment. For deeper background on worm gearbox theory and industrial selection methodology, see the comprehensive worm gearbox technical guide covering ISO/AGMA load capacity calculations.

Types of FGV035 Configurations for OEM Equipment Designers

The FGV035 platform supports four standard variants matching different OEM equipment design preferences. Same 35 mm gear-set internals across all four; differentiation is in mounting interface, output style, and motor adapter:

The pre-mated FGV035-Mo variant ships as a complete worm gear motor unit with the motor selection matched to the OEM application duty profile — eliminating the supply-chain step of separately sourcing the motor and pairing it on the OEM assembly line. Available motor options span 0.18–0.55 kW IEC 3-phase, 0.18–0.37 kW single-phase, and 24V/48V DC in the 50–200 W range. For motor-pairing options across the AC, single-phase, and DC universe, the worm gear motor specialist resource provides current motor-platform compatibility data.

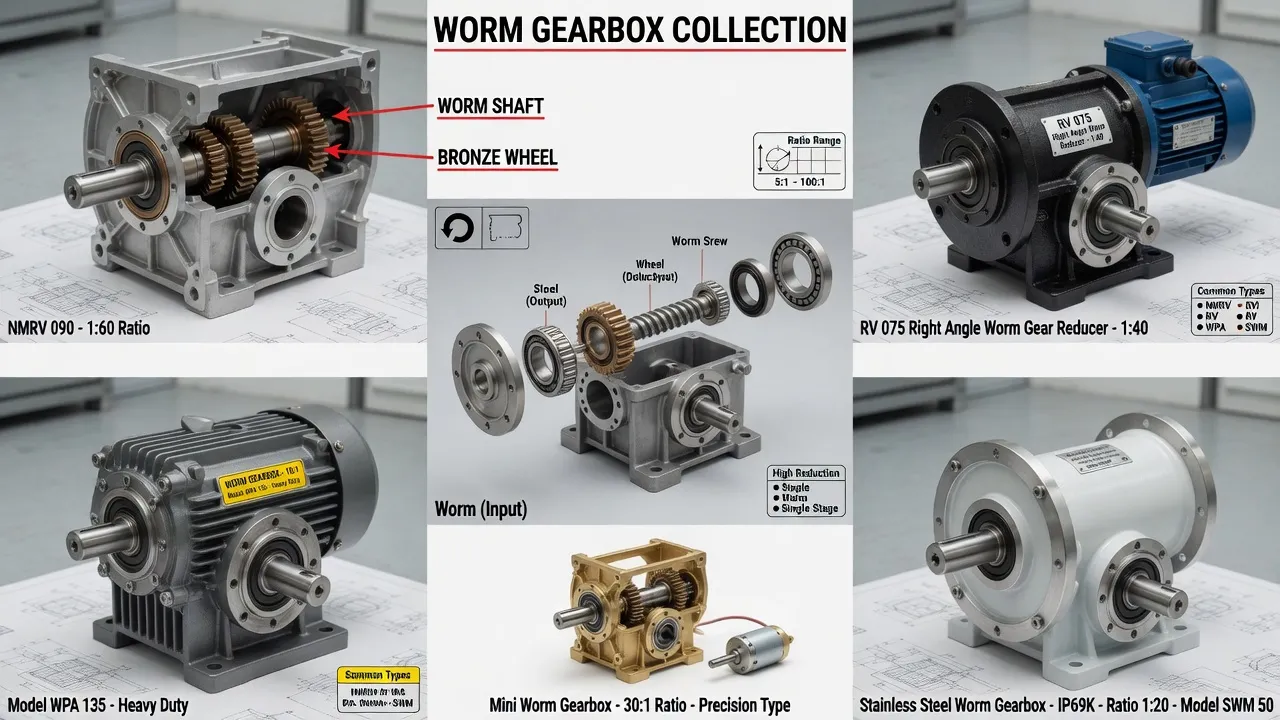

FGV035 Production Process — Cost-Optimized High-Volume Manufacturing Flow

The FGV035 production flow is engineered for high-volume cost economics while maintaining ISO 9001:2015 quality control at each stage. Six stages on a continuously-running production line:

1. Bronze worm wheel casting: CuSn12Ni2 phosphor bronze centrifugally cast in graphite molds at controlled cooling rate, achieving HB 95–110 hardness. Each casting passes ultrasonic verification per ASTM E114 with porosity acceptance <2.0% volumetric.
2. Worm screw machining: 20CrMnTi steel bar-stock turned to rough profile, then case-hardened HRC 58–62 (case depth 0.6–0.9 mm), then CBN profile-ground to ISO 1328 Class 7 with surface finish Ra 0.4 µm. Standard-class production tolerance, optimized for high-volume throughput.
3. Aluminum housing die-casting: ADC12 aluminum die-cast at 680°C in steel multi-cavity molds. The multi-cavity die produces 4 housings per casting cycle, a key element of the cost economics. Housings receive epoxy-polyester powder coating for outdoor and humid-environment corrosion resistance.
4. Gear pair lapping: Each worm and worm wheel pair runs together for 20 minutes under graduated load with lapping compound, achieving uniform tooth contact pattern verified by Prussian-blue check.
5. Assembly & lubrication: Tapered roller bearings preloaded to 5 N·m, FKM (Viton) double-lip seals installed, sealed-for-life PAO synthetic lubricant injected to specified volume (135 ml).
6. End-of-line testing: Each unit run-tested for 15 minutes at rated load, with sound level (<62 dB), backlash (<28 arcmin general industrial spec), and oil temperature rise (ΔT <30°C) recorded against acceptance limits before packaging.

How to Select the Right Aluminum Worm Gearbox for Your OEM Equipment

A six-step procedure aligns FGV035 specification with your OEM equipment design. The procedure focuses on the cost-versus-performance trade-offs that drive most light-duty OEM gearbox decisions.

1. Calculate continuous & peak torque: Continuous: load torque under typical operating conditions. Peak: stall torque or start-up shock. Apply 1.4× service factor for typical 8–12 hour OEM equipment duty, 1.7× for shock-loaded applications, 2.0× for high-cycle reversing applications.
2. Determine output speed: Common OEM output speeds: agricultural augers 14–28 rpm (ratio 50:1–100:1); light conveyors 28–70 rpm (ratio 20:1–50:1); packaging machine indexing 30–90 rpm (ratio 15:1–50:1); rotary tables 14–47 rpm (ratio 30:1–100:1).
3. Confirm self-locking requirement: Vertical-lift, gate-opener, and load-holding applications require self-locking property. Specify ratio ≥30:1 to engage self-locking. Continuous-duty applications without load-holding requirement (general conveyors, fan drives, mixers) can use lower ratios for higher efficiency.
4. Choose configuration: Solid shaft (FGV035-S) for belt or coupling drives; hollow shaft (FGV035-H) for direct mount on driven shaft; NEMA 23 mount (FGV035-N23) for North American closed-loop stepper systems; pre-mated motor (FGV035-Mo) for OEM platforms simplifying supply chain to a single SKU.
5. Specify motor frame: 63B5/B14 (0.18–0.37 kW) for typical light-duty axes; 71B5/B14 (0.55 kW) for higher-torque applications; NEMA 23 for North American closed-loop systems; 24V/48V DC for portable battery-powered equipment. Contact our worm gearbox engineering team with your motor frame specification for compatibility verification.
6. Determine annual volume requirement: Annual contract pricing tiers begin at 100 units; volume tiers at 500, 2,500, 10,000, and 50,000 units provide progressive pricing improvements. For OEM platforms above 5,000 units annually, dedicated production allocation and private-label badging options are available.

Compatible Components & Spare Parts We Stock

All FGV035 components are stocked as separate spares for OEM in-line replacement programs and aftermarket service operations. Custom worm-and-gear-set production with OEM-specific modulus or tooth profile is supported via dedicated tooling allocations — reference the worm gear material and machining knowledge base for material selection guidance when scoping a custom platform.

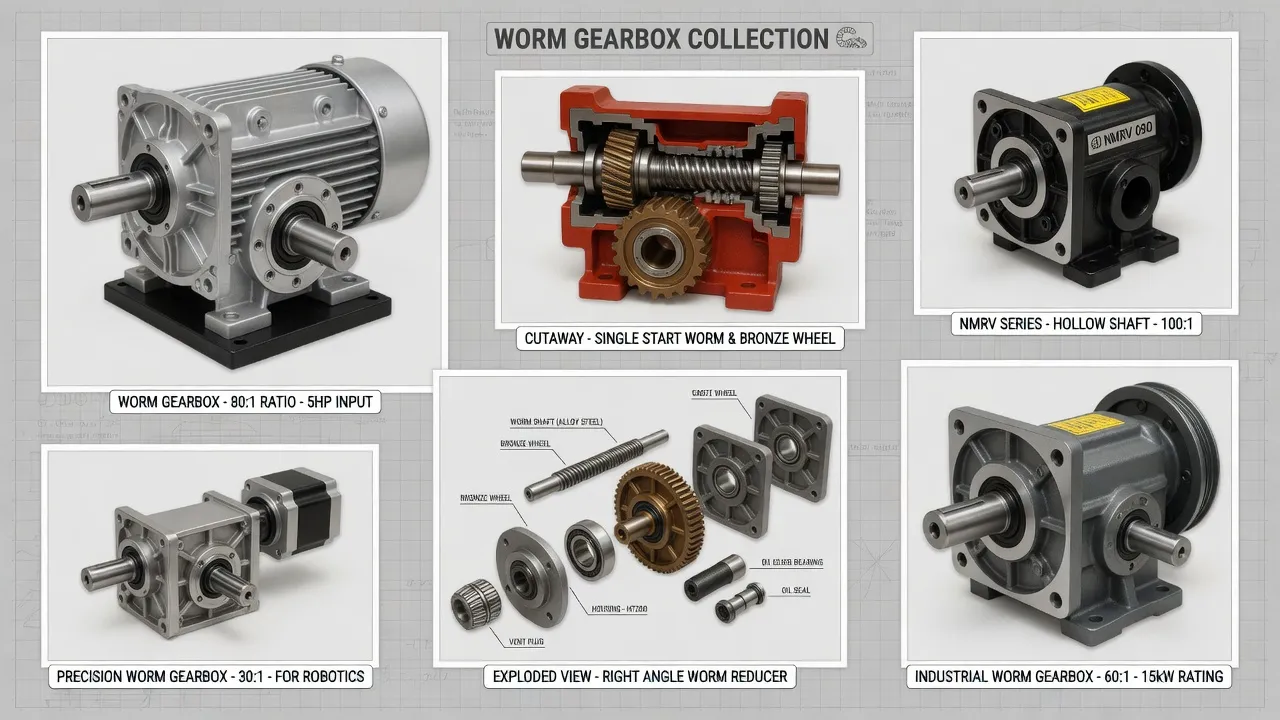

FGV035 Application Sectors Across Light-Duty OEM Equipment

The FGV035 is deployed across light-duty OEM equipment categories where the cost-mass-self-locking combination outperforms alternatives. Annual deployment volumes give a sense of the application scale:

• Agricultural auxiliary drives: Feed augers, grain unloaders, livestock-feeder timers, irrigation pivot drives, and small-format harvesting equipment. The lightweight aluminum housing simplifies field service and replacement logistics.
• Light-format conveyors: Belt conveyors, accumulation conveyors, and indexing tables for packaging, sortation, and assembly applications. Self-locking property holds belt position during stop events without a separate brake.
• Packaging machinery: Carton-erector indexing, label-applicator drives, case-sealer rollers, bagger auger drives, and bottle-rotation positioners. High-volume OEM platforms benefit from the FGV035-Mo single-SKU supply chain.
• Vending & dispensing equipment: Snack vendor spirals, beverage-can dispensers, ice-maker auger drives (light-format models), and similar small-format dispensing mechanisms.
• Gate openers & access control: Light-format swing-gate and slide-gate openers for residential and small commercial properties. Self-locking property holds gate position against wind load.
• Garage & door operators: Sectional door openers, roll-up door drives, and similar light-duty door automation equipment.
• Solar tracker drives: Single-axis and dual-axis residential and small commercial solar-tracker positioning. Self-locking property holds tracker position under wind load without active power consumption.
• Workshop & light industrial: Drill-press table drives, milling-machine power feeds, woodworking equipment auxiliaries, and small-format CNC-router axes.

What OEM Equipment Engineers & Distributors Say About the FGV035

Market Price Comparison — FGV035 vs Industry Alternatives

The aluminum NMRV035-class worm gearbox is the single most price-competitive gear-reduction format in the 30–50 Nm torque range globally, with significant pricing variance across supplier tiers. The table below maps the typical market position of the FGV035 against the broader category landscape:

The FGV035 is positioned in the “quality-engineered, cost-competitive” mid-tier. Meaningfully better than low-cost imports on lubrication quality, seal-life, and dimensional consistency — while running at roughly 40–55% the cost of European brand-name equivalents. For OEM platforms above 5,000 units annually, the per-unit cost gap vs European brands typically exceeds the total ROI of the platform engineering work, making the FGV035 the operationally rational specification choice.

Why Source the FGV035 Aluminum Worm Gearbox From Us

Three reasons OEM equipment engineers and global distributors source FGV035 from gearboxesworm.net:

• Worm gearbox specialist depth at value pricing: Worm gearbox is our only product category — not a peripheral catalog item. The full ISO 14521 / DIN 3996 / AGMA 6034 engineering depth applies to FGV035 the same as to our precision-class lines, despite the more accessible price point. Read more about our worm gearbox manufacturing capability.
• OEM-volume cost competitiveness: Annual contract pricing tiers at 100, 500, 2,500, 10,000, and 50,000 unit volumes — with private-label badging available at 5,000+ units for OEMs marketing branded equipment. The 10,000-unit tier typically saves 35–42% versus single-unit pricing — meaningful at OEM scale.
• Global supply-chain reliability: Multi-month finished-goods buffer in our central warehouse; production redundancy across two manufacturing lines; standard-configuration FGV035 ships within 5–7 business days globally to most major export markets. Critical for OEM line-stop avoidance and seasonal-demand fulfillment.
